Mono Pumps
World Leader in Progressive Cavity Technology.
Mono is the original inventor of the progressive cavity pump and remains the global leader in the technology. Mono pumps handle viscous, abrasive, shear-sensitive and chemically aggressive fluids that centrifugal pumps cannot.
Product Ranges
Available Models

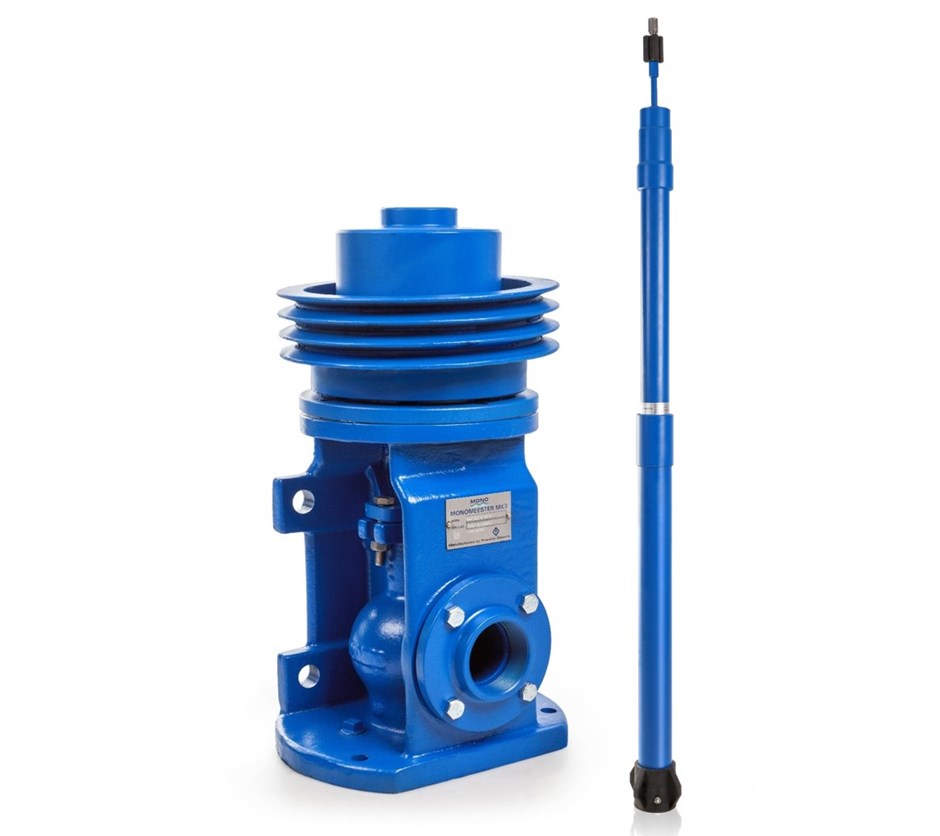

Mono BP Range
Robust and durable range able to work under the toughest conditions. With 32 models, the right performance is available for any application. Discharge heads can be driven by petrol, diesel, solar, wind or electricity. Rubber stator and flexible shaft give easy mobility. Positive displacement rotor-stator design ensures efficiency and flexibility.
Key Specs
- Performance up to 100,000 ℓ/h and heads up to 300m
- New FE design for improved performance and efficiency
- Progressive cavity technology ensures durability
- Flexible shafts with rolled threads — no universal coupling
- Twin datum bearings on larger elements to eliminate drive shaft stress
Models

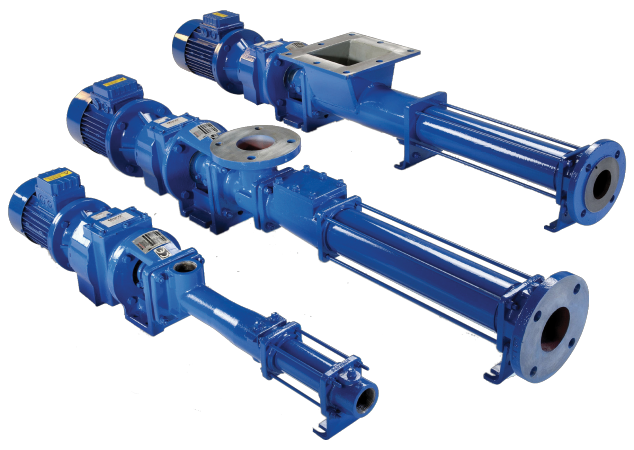

Mono C Range
Designed to fit compact spaces whilst reliably performing to maximum duty requirements. Features suction lift over 7 metres, positive displacement for process control and variable speed for accurate dosing. Motor drive arrangements designed for easy assembly and dismantling.
Key Specs
- Flows up to 420 m³/h
- Pressure up to 24 bar
- 7 metres suction lift
- Wide variety of rotor and stator materials
- Square inlet available for sludge applications
- Rotor coatings for abrasion and corrosion resistance
- Vertically or horizontally mounted
Models

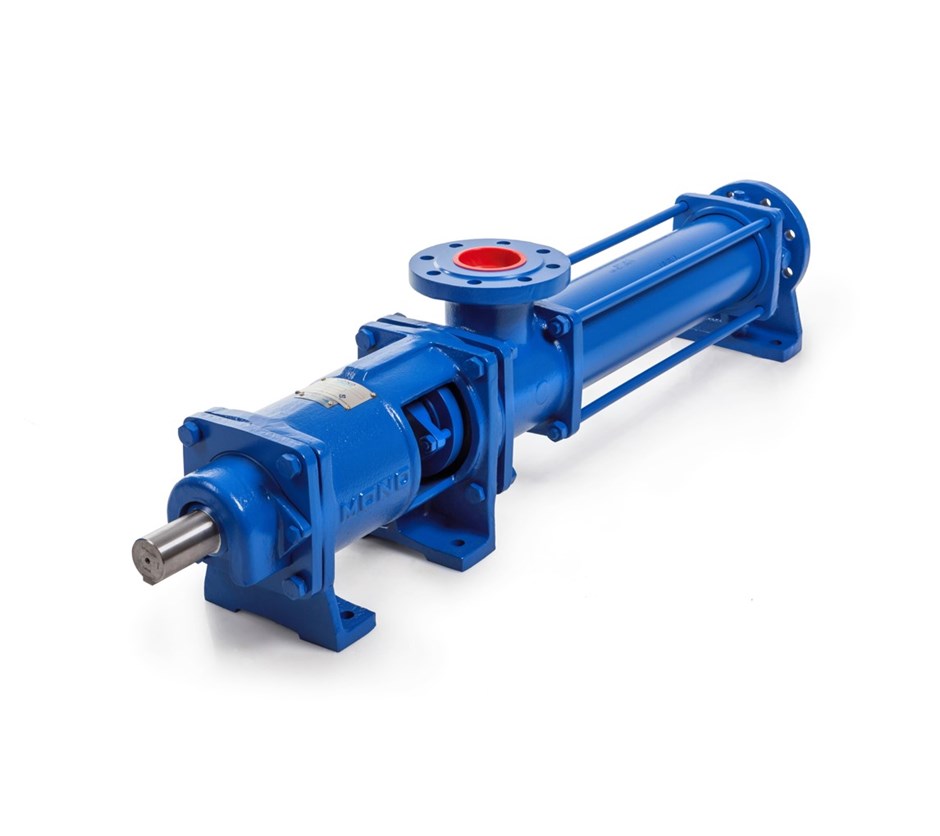

Mono HD Range
Horizontal discharge transfer pumps for high-pressure water transfer. 16 models, popular for inherently self-priming features. Versatile — driven by electric motors, diesel, petrol or solar.
Key Specs
- High pressure water transfer applications
- 16 models — inherently self-priming
- Drive by electric motor, diesel, petrol or solar
- Horizontal discharge configuration
Models

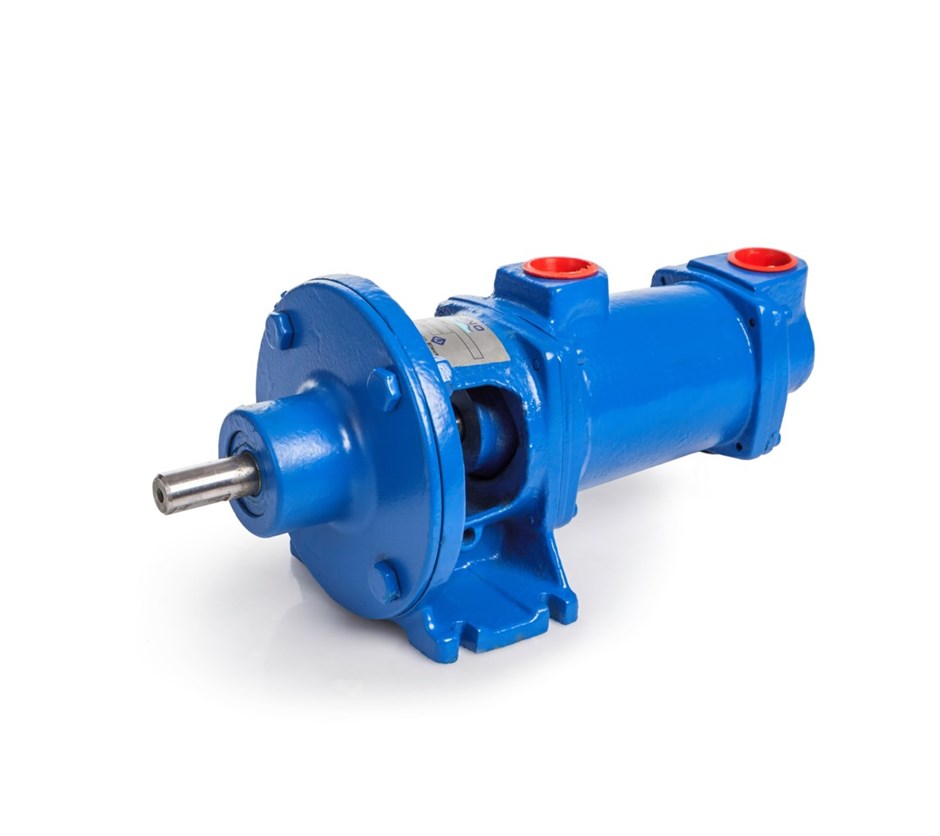

Mono G Range
5 models offering the highest suction capability while providing uniform, non-pulsating flow. Suitable for mining, water & waste, pharmaceutical, food & beverage, agriculture, petrochemical and pulp & paper.
Key Specs
- Flow rates up to 230 m³/h
- Pressures up to 30 bar
- Uniform, non-pulsating flow
- Pressure independent of speed
- Capacity proportional to speed
- Low shear
Models

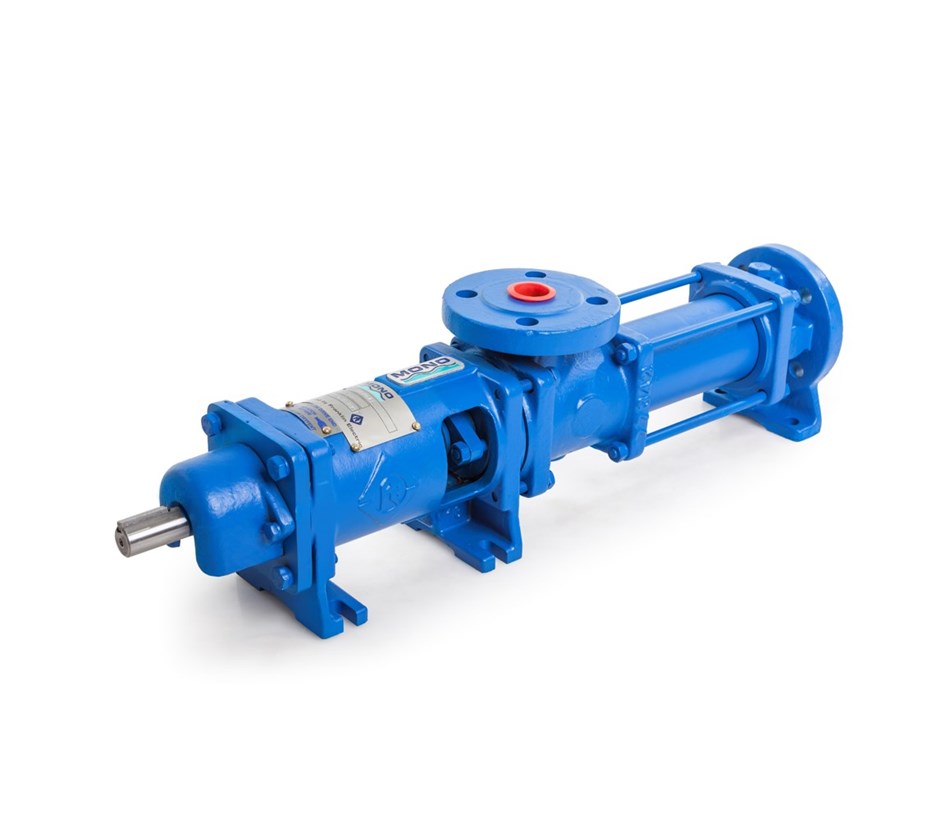

Mono M Range
Widely used for industrial processing and agriculture — ideal for viscous, abrasive fluids. Simple universal couplings and helical rotor. Manufactured in cast iron or stainless steel for hygienic applications.
Key Specs
- Flow rates up to 60 m³/h
- Pressures up to 30 bar
- Uniform, non-pulsating flow
- Low shear — pressure independent of speed
- Cast iron or stainless steel construction
Models

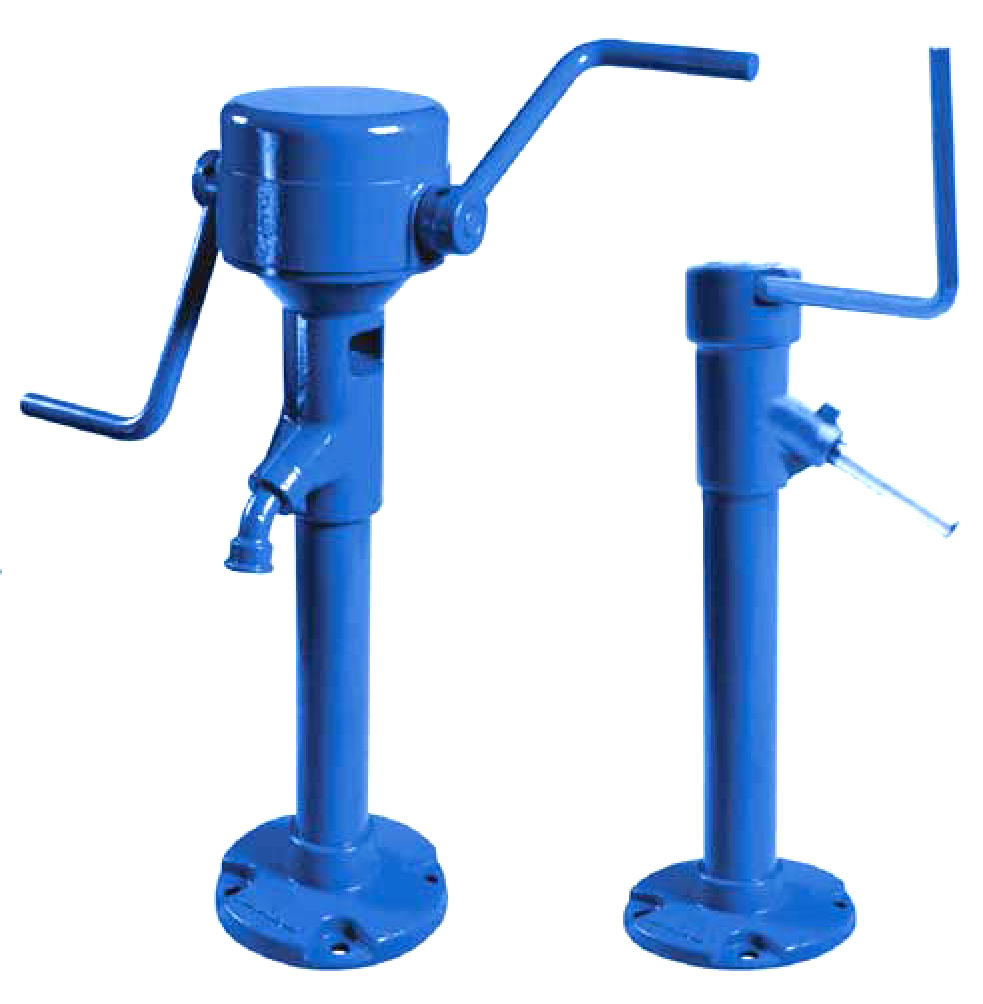

Mono Hand Pumps
Maintenance-free, robust hand pumps for applications with no alternative power source. Direct drive head for shallow wells and boreholes up to 60m. Geared action easy for all users.
Key Specs
- Flow rates up to 12 ℓ/min
- Depths up to 120m
- Efficient, robust design — maintenance-free
- Geared action — easy for all users including elderly
- No power source required
- Suitable for stock watering, rural drinking water, overhead tanks
Models
Key Features
What Sets Mono Apart
- Handles high viscosities
- Low shear — ideal for shear-sensitive products
- Reversible flow direction
- Self-priming from dry
- Wide chemical compatibility
Applications
Industries We Serve
